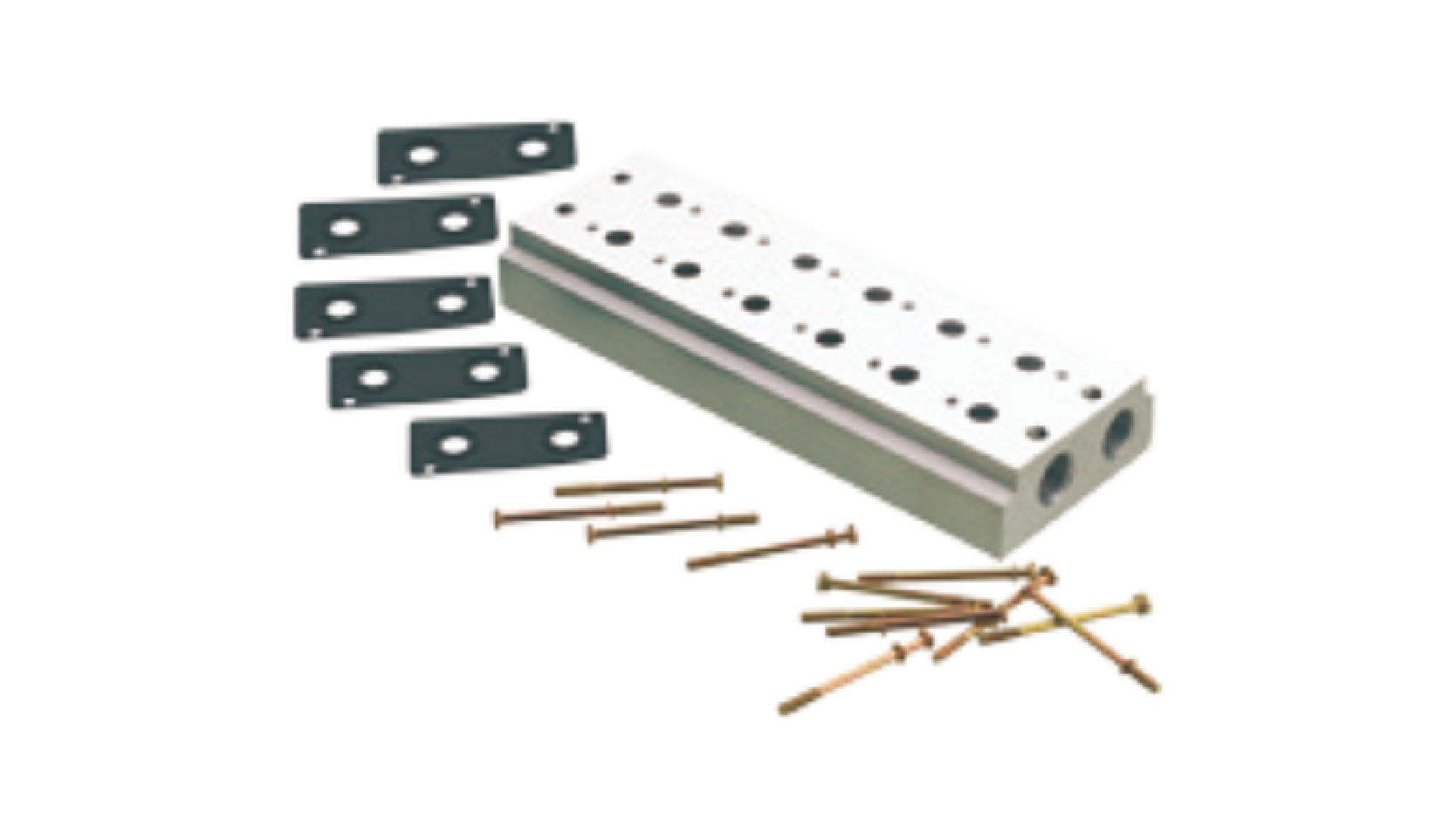

· 可同時滿足多個電磁閥一體式安裝,滿足多通道控制需求;
· 集中進/排氣設計,結構緊湊、簡潔;
· 定制化選項,可滿足多種需求;

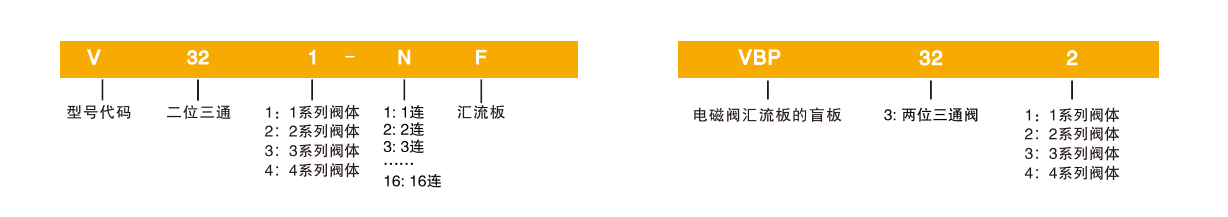

配二位三通,2系列閥體的匯流板,5連,其ERP編碼為:V322-5F訂購2系列閥體大小的盲板,其ERP編碼為:VBP322
序號 | 匯流板型號 | 適用閥體型號 |
1 | V321-NF(N≤16) | RV3211 (H)/RV3212 |
2 | V322-NF(N≤16) | RV3221(H)/RV3222 |
3 | v323-NF (N≤12) | RV3231 (H)/RV3232 |
4 | v324-NF(N≤7) | RV3241 (H)/RV3242 |
?
?

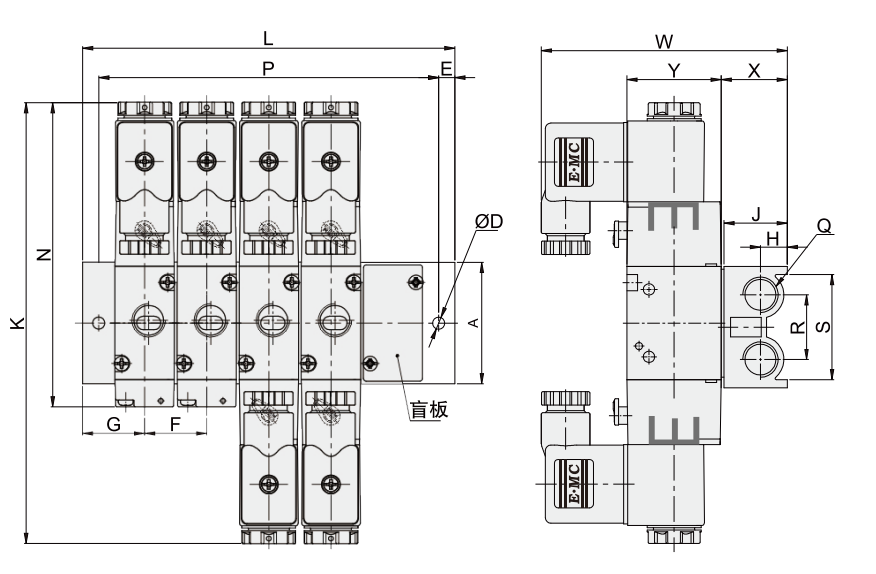

型號符號 | L | A | D | E | ? | ? | H | ? | k | ||||||||||
F | 2F | 3F | 4F | 5F | 6F | 7F | 8F | gF | 10F | ||||||||||
v321-□F | 38 | 57 | 76 | 95 | 114 | 133 | 152 | 171 | 19D | 209 | 31 | 4.5 | 5.25 | 19 | 18 | ? | 19 | 132,2 | |
v322-□F | 46 | 69 | 92 | 115 | 138 | 161 | 184 | 207 | 230 | 253 | 45 | 4.5 | 6 | 23 | 23 | 10 | 23.5l | 163.4 | |
v323-□F | 54 | 82 | 110 | 138 | 166 | 194 | 222 | 250 | 278 | 306 | 50 | 4.5 | 6 | 28 | 26 | 12 | 28 | 175.4 | |
v324-□F | 63 | 98 | 133 | 168 | 203 | 238 | 273 | 308 | 343 | 378 | 62.5 | 5.5 | ? | s5 | |31.5 | 16 | 35 | 199.4 | |
型號符號 | P | N | o | R | s | w | x | Y | |||||||||||
1F | 2F | 3F | 4F | 5F | 6F | 7F | 8F | gF | 10F | ||||||||||
v321-□F | 28 | 47 | 66 | 85 | 104 | 123 | 142 | 161 | 180 | 199 | 92.1 | G1/8 | 17.5 | 25 | 75.2 | 20 | 27 | ||
v322-□F | 34 | 57 | 80 | 103 | 126 | 149 | 172 | 195 | 218 | 241 | 112.7 | G1/4 | 24 | 39 | 91.2 | 24.5 | 35 | ||
v323-□F | 42 | 70 | 98 | 126 | 154 | 182 | 210 | 238 | 266 | 294 | 124.3 | G3/8 | 29 | 42 | 98,2 | 29 | 40 | ||
v324□-F | 49 | 84 | 119 | 154 | 189 | 224 | 259 | 294 | 329 | 364 | 144.7 | G1/2 | 35.5 | 51.5 | 110.2 | 36 | 50 |
